Link-Belt

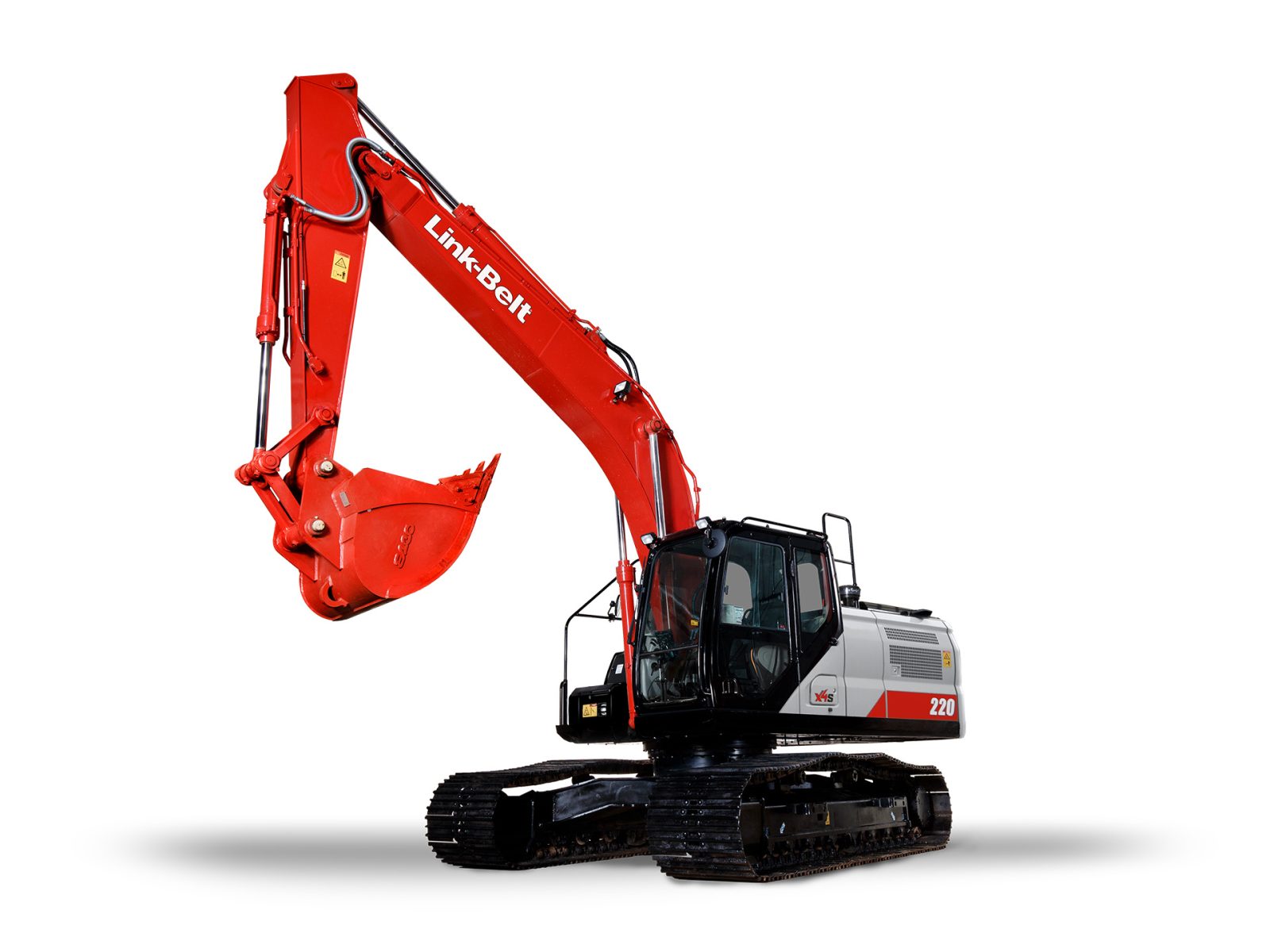

Link-Belt 220 X4S

SAE Net Horsepower
160 HP (119.3 kW)

Operating Weight
49,200 lbs (22.3 metric tons)

Interested?
787.785.9777

Like this model or can’t find the one you need? Contact us and we’ll get back to you as soon as possible. You can also call us at 787-785-9777.

Description Features Specifications

Description

Developed from the solid foundation of our award-winning X4 Series, the 220 X4S is purpose-built with modern technologies for various operating applications. The 220 X4S fits the expanding demands of dynamic contractors thanks to its stability, control, and strength in digging power. It is perfect for road building and maintenance, excavation, site preparation, construction, sewage work, or demolition operations.

Features

Technology Comes Standard
  • Dynamic Stability Assist
  • Height and Depth Alarm
  • Payload

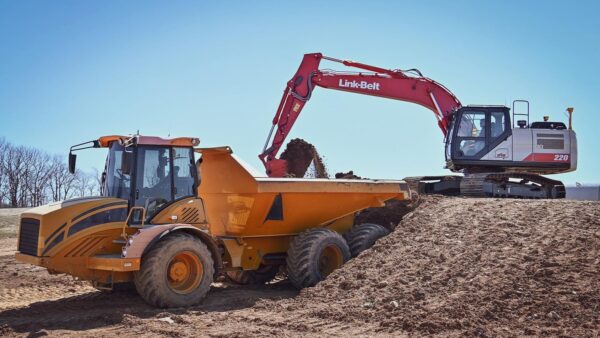

  • Digital Level

Top 10 Reasons to Buy an X4S

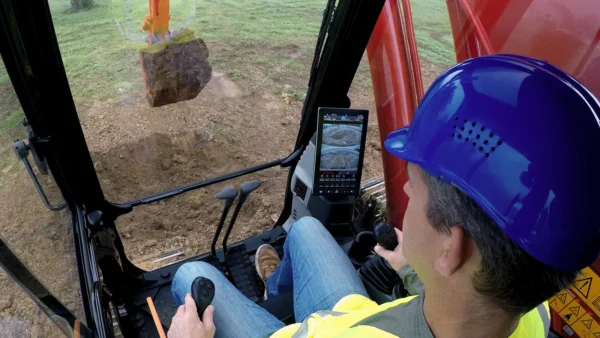

Thinking of buying a Link-Belt 220 X4S? From the full-size spacious cab and 10” machine monitor to superior fuel efficiency – find out the Top 10 Reasons to Buy an X4S.

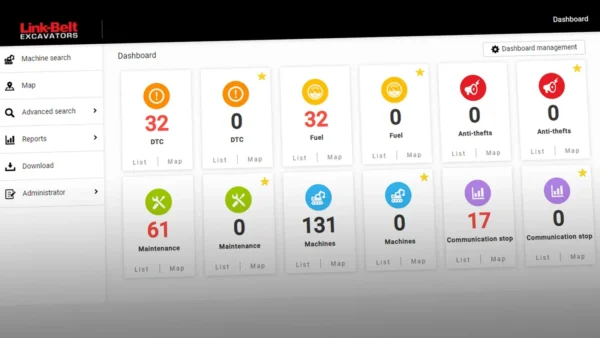

RemoteCARE®

The Link-Belt 220 X4S comes standard with a new dualband modem to improve RemoteCARE communication and functionality with greater range and real-time data capabilities – providing 24/7 remote monitoring with zero subscription charges or fees.



Standard Warranty

The Link-Belt 220 X4S hydraulic excavator is fully backed by a 5-year/5,000-hour full machine warranty and a 5-year / 10,000-hour Structural Warranty.

Specifications

Operating Weight 49,200 lbs
Engine Make Isuzu
Engine Model AR-4HK1X
Net HP 160 hp
Max Dig Depth 21′ 10″ ft/in
Reach at Ground Level 31′ 11″ ft/in
Arm Force 25,100 lbf
Bucket Digging Force 34,600 lbf
Bucket Capacity, SAE Heaped 0.64 – 1.80 yd3
Max Travel Speed 3.5 mph
