Yanmar

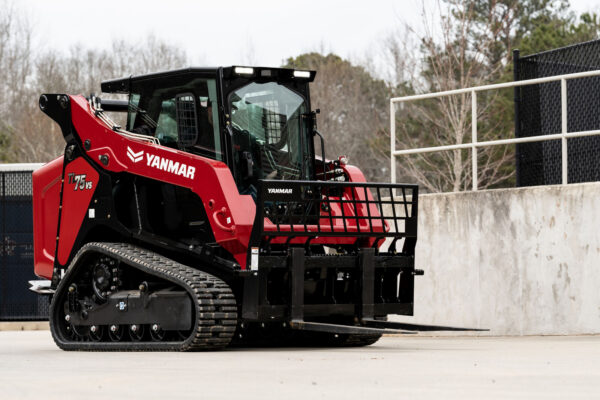

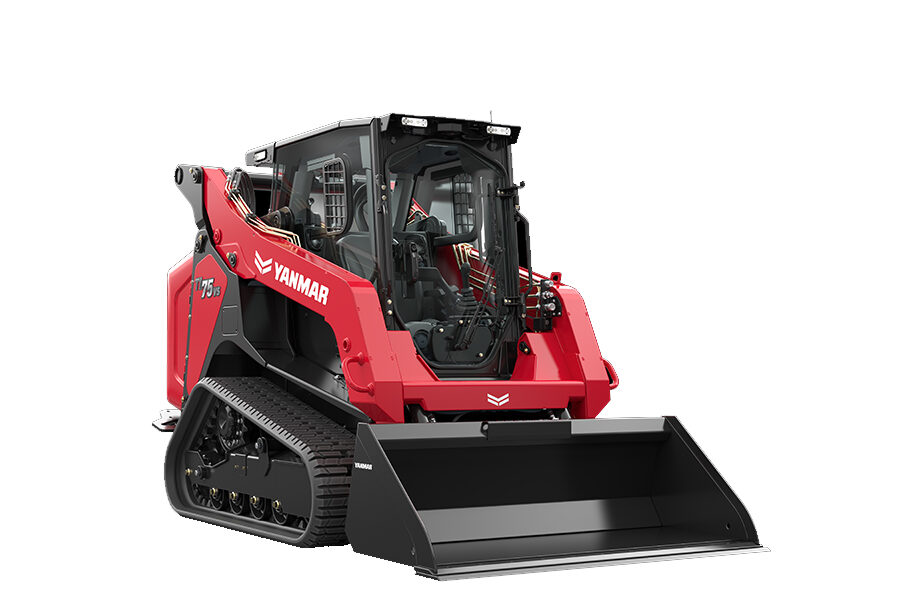

Compact Track Loader TL75VS-1C

Description

Vertical Lift Mastery

The TL75VS-1C delivers unmatched cab comfort and cutting-edge technology all in one. From its hardy construction to the savvy SmartAssist telematics, this machine is a force to be reckoned with, blending relentless performance with intuitive ease of use. It’s not just a tool; it’s your strategic partner in conquering the toughest jobs with unparalleled precision and grit.

Features

Comfort Meets Functionality

Inside the TL75VS-1C, the suspended seat keeps you focused during long hours, while the touchscreen display puts control at your fingertips. Panoramic visibility ensures safety and strategic maneuvering. For quick exits, the removable roof hatch adds convenience. It’s comfort, control, and safety in one.

Unyielding Performance

Backed by a 1-year/1,000-hour warranty, the TL75VS-1C’s rugged undercarriage, heavy-duty tracks, and construction-grade components ensure lasting durability. Accessible service points and a swing-out radiator make maintenance a breeze, minimizing downtime. It’s a machine built to withstand the toughest challenges while keeping operations running smoothly.

Tactical Command

The TL75VS-1C boasts a 7-inch color display for real-time insights, alongside efficiency features like self-leveling technology and auto two-speed mode, enhancing productivity and precision.

Specifications

Operating Specifications

Loader Arms Vertical

Operating Weight (Open ROPS Base) 9,205 lbs

Operating Weight (AWC Cab Base) 9,545 lbs

Ground Pressure at Operating Weight 6.1 psi

Rated Operating Capacity (35% of tipping load) 2,555 lbs

Tipping Load 7,300 lbs

Travel Speed, Maximum 7.5 mph

Engine

Type Diesel 4-cylinder, Intercooled Turbo

Model Yanmar 4TN86CHT

Gross Power Rating 71.5 hp

Displacement 2.1 L

Torque, Peak 193.8 ft-lb

Cooling System Belt-driven fan and anti-freeze filled radiator cooling system

Intake Air Cleaner Dual-stage

Emission Controls Meets all U.S. EPA Tier 4 final standards

Undercarriage

Track Width 12.6 in.

Length of Track on Ground 60 in.

Ground Contact Area 1,512 in.²

Drive System Two hydrostatic direct drive sprockets controlled by single joystick

Undercarriage Suspension Two independent torsion axles per undercarriage

Auxiliary Hydraulic System

Pump Capacity, Low/High 21.4 / 26.7 gpm

Max System Pressure, Low / High 3,480 / 3,771 psi

Controls Intermittent via joystick button or continuous via console switch.

Couplers Flat Faced Couplers: 1/2 in.

Cooling System High efficiency side-by-side radiator and oil cooler

Electrical System

Nominal Charge 12 V

Battery 800 CCA

Charging System 80 amp alternator

Outlets 1-12 V port inside operator station

Wiring Pre-wired for all factory-available accessories

Standard Features Block heater

Service Capacity

Fuel Tank 21.4 gal

Operator Station

Cab ROPS or All-Weather Cab with curved glass door

Seat Mechanical suspension seat with 2-in. seat belt

Controls Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds

Engine Speed Standard hand dial operation with foot pedal optional

7-in. Color Machine Display Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages

ROPS ROPS: ISO 3471
Restraint-ISO 6683, SAE J2292, Cal OSHA 1596

FOPS ISO 3449 Level 1(level 2 optional), emergency roof exit

Illumination 2 – Forward-facing LED lights
2 – Rear-facing LED lights

Standard Features Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow

Optional Features All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, LED side lights, rear view camera, SmartAssist Remote telematics, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control
