Yanmar

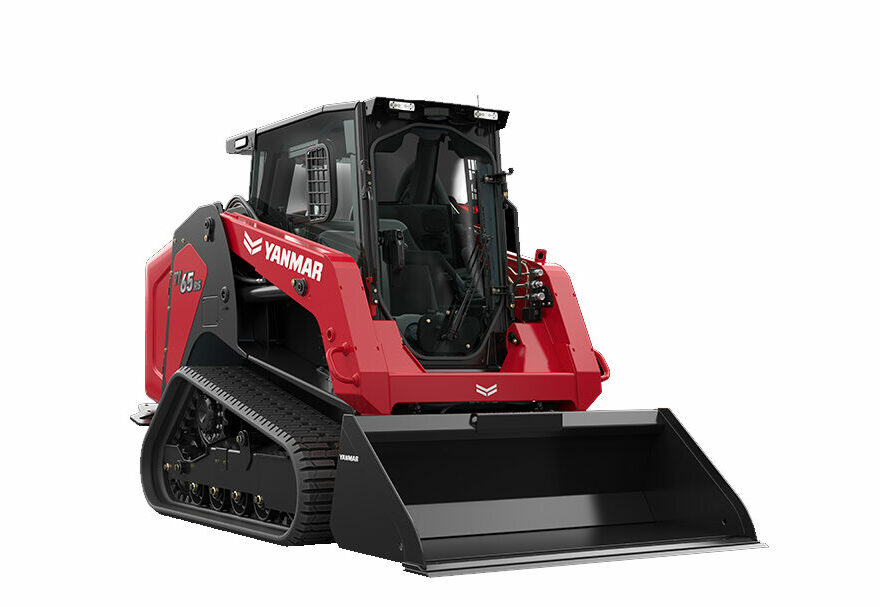

Compact Track Loader TL65RS-1C

Description

Compact Power, Maximum Versatility

From maneuvering through cramped corners to lifting heavy loads with ease, the TL65RS-1C doesn’t just get the job done, it excels at it. Its rugged exterior hints at the resilience under the hood, making it a dependable companion for every project, no matter the challenge. So, if you’re looking for a compact track loader that doesn’t compromise on power or performance, the TL65RS-1C is your ultimate choice.

Features

Premium Comfort and Visibility

Step into the TL65RS-1C’s cab, your command center encased in comfort and practicality. The suspended seat keeps you cruising in comfort, while the touchscreen and panoramic view keep you in control. And there’s a removable roof hatch for quick escapes when the going gets rough. It’s not just a workspace; it’s your cockpit for mastering every task.

Built for Endurance and Dependability

Count on the TL65RS-1C’s rugged reliability, from its steel-embedded undercarriage to heavy-duty tracks. Featuring easy service access, it’s built to take a beating and keep going. No downtime, no compromises. Just relentless performance when you need it most.

Enhanced Control

Level up your operator game with the TL65RS-1C’s cutting-edge 7-inch color display and preset options for attachment angles and loader arm positions. Its rugged Dual Direction Self Leveling and Automatic Ride Control features make for seamless shifting between low and high-speed modes.

Specifications

Operating Specifications

Loader Arms Radial

Operating Weight (Open ROPS Base) 8,575 lbs

Operating Weight (AWC Cab Base) 8,915 lbs

Ground Pressure at Operating Weight 5.7 psi

Rated Operating Capacity (35% of tipping load) 2,100 lbs

Tipping Load 6,000 lbs

Travel Speed, Maximum 7.5 mph

Engine

Type Diesel 4-cylinder, Intercooled Turbo

Model Yanmar 4TN86CHT

Gross Power Rating 67 hp

Displacement 2.1 L

Torque, Peak 193.8 ft-lb

Cooling System Belt-driven fan and anti-freeze filled radiator cooling system

Intake Air Cleaner Dual-stage

Emission Controls Meets all U.S. EPA Tier 4 final standards

Undercarriage

Track Width 12.6 in.

Length of Track on Ground 60 in.

Ground Contact Area 1,512 in.²

Drive System Two hydrostatic direct drive sprockets controlled by single joystick

Undercarriage Suspension Two independent torsion axles per undercarriage

Auxiliary Hydraulic System

Pump Capacity, Low/High 21.4 / 26.7 gpm

Max System Pressure, Low / High 3,480 / 3,771 psi

Controls Intermittent via joystick button or continuous via console switch.

Couplers Flat Faced Couplers: 1/2 in.

Cooling System High efficiency side-by-side radiator and oil cooler

Electrical System

Nominal Charge 12 V

Battery 800 CCA

Charging System 80 amp alternator

Outlets 1-12 V port inside operator station

Wiring Pre-wired for all factory-available accessories

Standard Features Block heater

Service Capacity

Fuel Tank 21.4 gal

Operator Station

Cab ROPS or All-Weather Cab with curved glass door

Seat Mechanical suspension seat with 2-in. seat belt

Controls Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds

Engine Speed Standard hand dial operation with foot pedal optional

7-in. Color Machine Display Fuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages

ROPS ROPS: ISO 3471
Restraint-ISO 6683, SAE J2292, Cal OSHA 1596

FOPS ISO 3449 Level 1(level 2 optional), emergency roof exit

Illumination 2 – Forward-facing LED lights
2 – Rear-facing LED lights

Standard Features Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow

Optional Features All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, LED side lights, rear view camera, SmartAssist Remote telematics, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control
