Yanmar

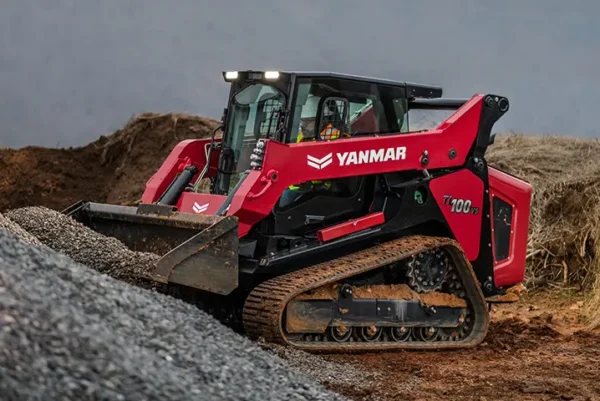

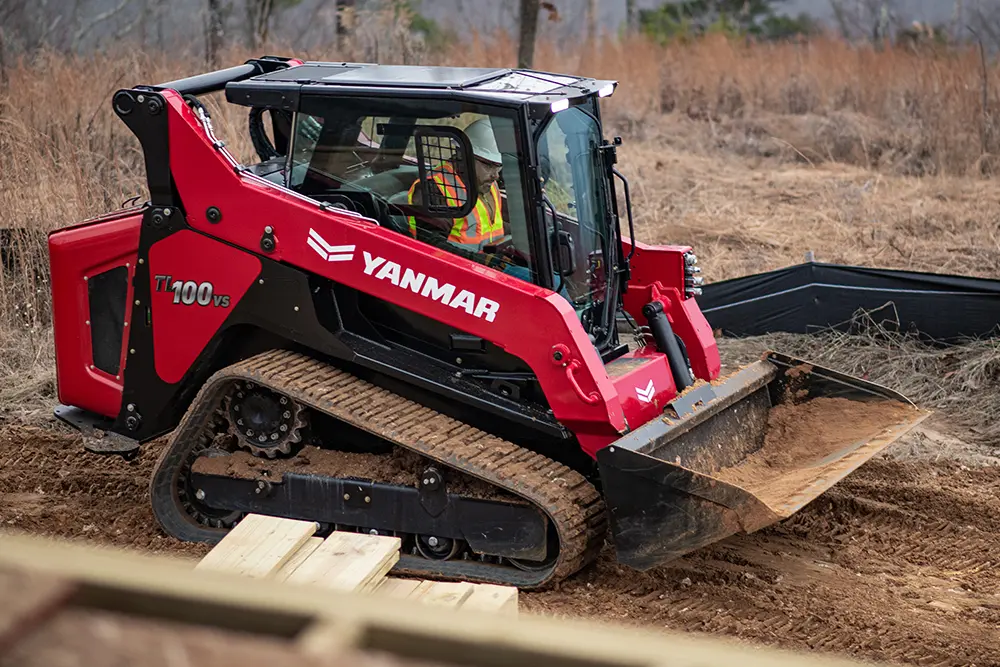

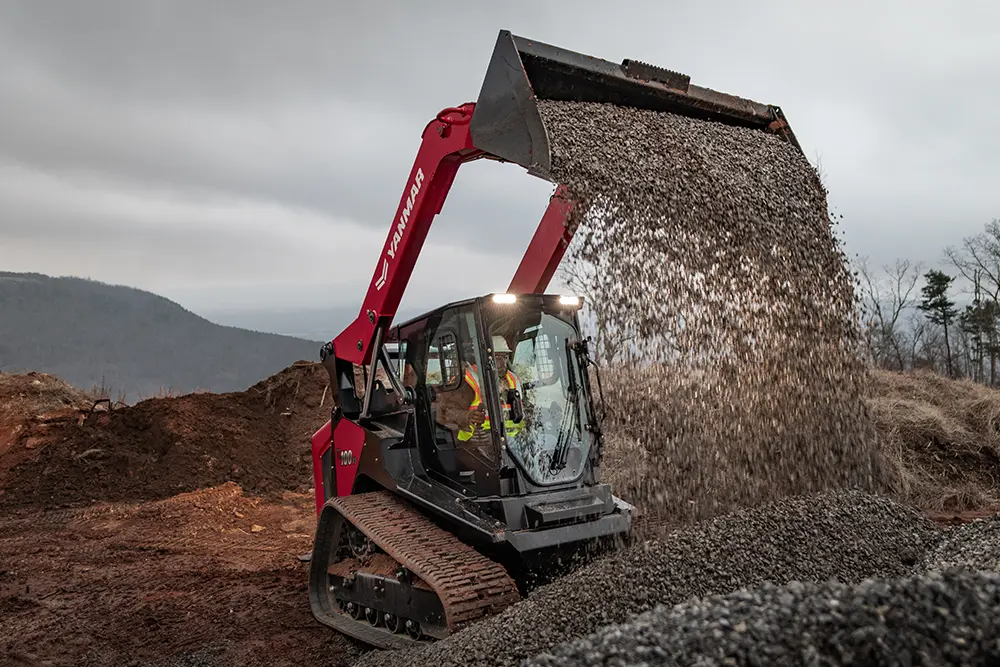

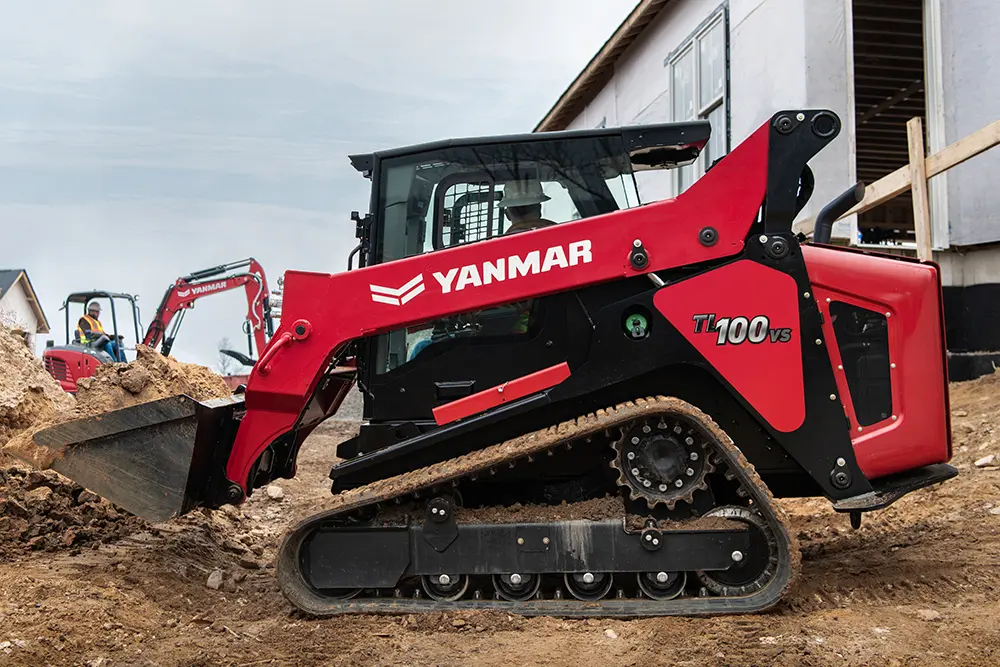

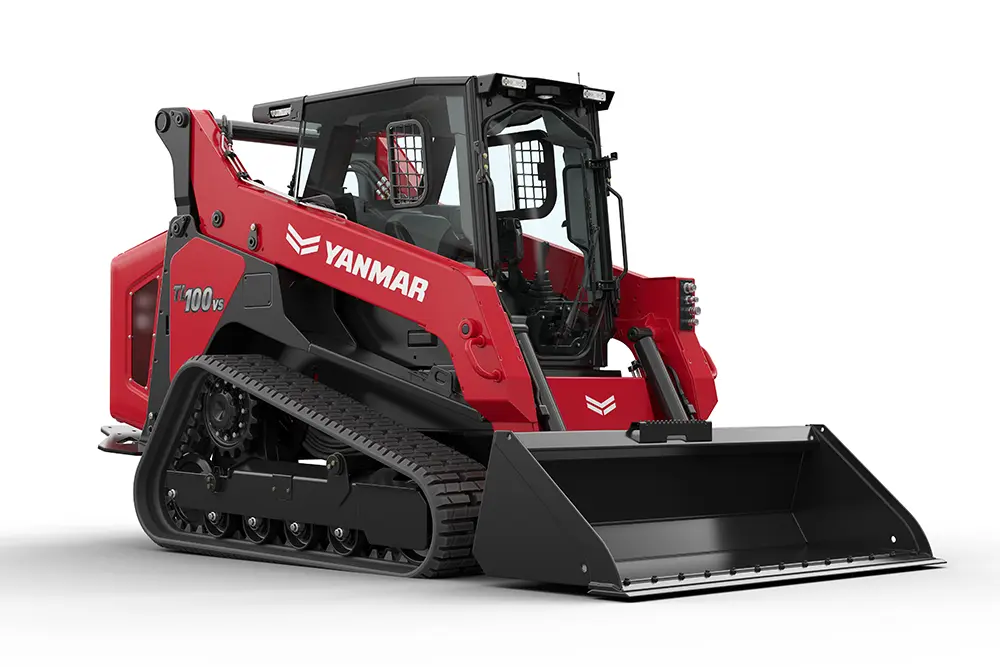

Compact Track Loader TL100VS

Interested?
787.785.9777

Description Features Specifications

Description

Construction-Grade Reliability and Performance.

Yanmar’s new TL100VS is a construction-grade compact track loader featuring Yanmar’s renowned reliability, quality, and performance. The TL100VS is ideal for improved productivity in construction work, rental applications, landscaping job and more.

Features

Do More – Sacrifice Less

Get more done with less material loss with optional material retention features. Operators can preset the attachment angle and loader arm position for convenience during repetitive tasks. Dual Direction Self Leveling and Automatic RideControl capabilities improve material retention. The TL100VS can be switched between high and low speed modes for efficient operation.

Convenience and Safety

Improve convenience and operator safety with a premium clear-sided cab, a 7” touch screen, and Yanmar SmartAssist Telematics. The system’s features range from error detection and work reports to integrated theft protection.





A Machine You Can Count On

Achieve maximum reliability and durability with the TL100VS’ heavy-duty suspended undercarriage. Featuring standard torsion axle suspension to smooth out the ride, the undercarriage improves operator comfort and material retention.

Specifications

Operating Specifications

Loader Arms Vertical
Operating Weight (Open Cab) 10,555 lbs
Operating Weight (Closed Cab) 10,835 lbs
Ground Pressure at Operating Weight 4.4 psi
Rated Operating Capacity (35% of tipping load) 3,780 lbs
Tipping Load 10,800 lbs
Travel Speed, Maximum 8 mph

Engine

Type Diesel 4-cylinder, Intercooled Turbo
Model Yanmar 4TNV94FHT
Gross Power Rating 103.5 hp
Displacement 3.1 L
Torque, Peak 291 ft-lb
Cooling System Belt-driven fan and anti-freeze filled radiator cooling system
Intake Air Cleaner Three-stage
Emission Controls Meets all U.S. EPA Tier 4 final standards

Undercarriage

Track Width 17.7 in.
Length of Track on Ground 67 in.
Ground Contact Area 2,372 in.2
Drive System Dual hydraulic drive motors
Undercarriage Suspension Two independent torsion axles per undercarriage

Auxiliary Hydraulic System

Pump Capacity, Low/High 23 / 41 gpm
Max System Pressure, Low / High 3,481 / 3,989 psi
Controls Intermittent via joystick button or continuous via console switch. High flow is adjustable.
Couplers Flat Faced Couplers: 1/2 in. low flow, 3/4 in. high flow
Cooling System High efficiency side-by-side radiator and oil cooler

Electrical System

Nominal Charge 12 V
Battery 950 CCA
Charging System 80 amp alternator
Outlets 1-12 V port inside operator station
Wiring Upgradeable wiring harness
Standard Features Block heater

Service Capacity

Fuel Tank 34 gal
Def Capacity 5 gal

Operator Station

Cab ROPS or All-Weather Cab with curved glass door
Seat Mechanical suspension seat with 2-in. seat belt
Controls Electronic joystick controls with ISO or H pattern settings, adjustable operator profiles and speeds
Engine Speed Standard foot pedal with hand dial option
7-in. Color Machine DisplayFuel, tachometer, engine temp, hour meter, battery, trip meter, hydraulic temperature, water temperature, multiple languages
ROPS ROPS: ISO 3471
Restraint-ISO 6683, SAE J2292, Cal OSHA 1596
FOPS ISO 3449 Level 1(level 2 optional), emergency roof exit
Illumination 2 – Forward-facing LED lights
2 – Rear-facing LED lights
Standard Features Mechanical suspension seat, fixed joystick controls, 7-in. color display, roof panel, rear window, cupholder, two speed, standard flow
Optional Features All Weather Cab, heat & A/C, adjustable joystick controls, foot throttle, phone holder, radio with Bluetooth and USB, roof insulation, high flow, 3 in. seat belt, air ride seat, LED side lights, rear view camera, Smart Assist remote telematics, Remote control kit, 1/2 in. polycarbonate door, Hyd Q/A, attachment control kit, dual direction bucket positioning, return to position and ride control.
